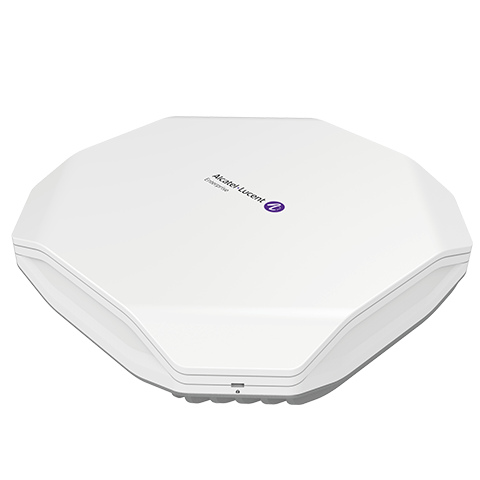

Stellar Access Point 1351

Description

Radio specification
AP type: Indoor Wi-Fi 6 (802.11ax)
• Tri radio, 5 GHz High 8×8:8, 5 GHz Low 4×4:4 and 2.4 GHz 4×4:4
¬ 5 GHz High: 8×8:8 up to 4.8 Gbps wireless data rate to individual 8SS HE80 or4SS HE160 802.11ax client devices
¬ 5 GHz Low: 4×4:4 up to 4.8 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices
¬ 2.4 GHz: 4×4:4 up to 1.147 Gbps wireless data rate to individual 4SS HE40 802.11ax client devices
• Supported frequency bands (country-specific restrictions apply):
¬ 2.400 to 2.4835 GHz
¬ 5.150 to 5.250 GHz
¬ 5.250 to 5.350 GHz
¬ 5.470 to 5.725 GHz
¬ 5.725 to 5.850 GHz
• Available channels: Dependent on configured regulatory domain
• Brazil: Maximum transmit power: 24 dBm on 2.4 GHz, 27 dBm on 5 GHz
• Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
¬ 24 dBm on 2.4 GHz (18 dBm per chain)
¬ 27 dBm on 5 GHz H (18 dBm per chain)
¬ 24 dBm on 5 GHz L (18 dBm per chain)
• DFA (Dynamic Frequency Adjustment) optimises available channels and provides proper transmission power
• Transmit beamforming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• 802.11ax Target Wait Time (TWT) to support low-power client devices
• Supported data rates (Mbps):
¬ 802.11b: 1, 2, 5.5, 11
¬ 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
¬ 802.11n: 6.5 to 600 (MCS0 to MCS7, HT20 to HT40), 800 with 256-QAM
¬ 802.11ac: 6.5 to 1733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160),2166 with 1024-QAM
¬ 802.11ax (2.4 GHz): 3.6 to 1147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40)
¬ 802.11ax (5 GHz High): 3.6 to 4804 (MCS0 to MCS11, NSS = 1 to 8, HE20 to HE160)
¬ 802.11ax (5 GHz Low): 3.6 to 4804 (MCS0 to MCS11, NSS = 1 to 4,HE20 to HE160)
• Supported modulation types:
¬ 802.11b: BPSK, QPSK, CCK
¬ 802.11a/g/n/ac: BPSK, QPSK, 16- QAM, 64-QAM, 256-QAM
¬ 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
¬ 802.11n high-throughput (HT) support: HT 20/40
¬ 802.11ac very high throughput (VHT) support: VHT 20/40/80/160
¬ 802.11ax high efficiency (HE) support: HE 20/40/80/160
• Advanced Cellular Coexistence (ACC)
¬ Minimises interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/ femtocell equipment
• Full band 1×1 radio, dedicated for scanning
¬ Bluetooth 5/Zigbee: up to 6 dBm transmit power (class 1) and
-93 dBm receive sensitivity

Interfaces
• 2x multi-Gigabit 1/2.5/5/10 Gig autosensing(RJ-45) ports, Eth0-Eth1, Power over Ethernet (PoE) 802.3bt compliant
• 1x USB 3.0 Type A (5V, 500mA)
• Console
• Reset button: Factory reset

Visual indicators (Tri-color LED)
• For system and radio status
¬ Red flashing: System abnormal, link down
¬ Red light: System startup
¬ Red and blue rotate flashing: System running, OS upgrading
¬ Blue light: System running, dual bands working
¬ Green flashing: System running, no SSID created
¬ Green light: System running, single band working
¬ Red, blue and green rotate flashing
¬ System running, use for location of an AP

Security
• Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys
• 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE)
• 802.1X
• WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista
• Portal page authentication

Antenna
• AP1351: Integrated omni-directional antennas with maximum antenna gain of 3.9 dBi in 2.4 GHz, 3.9 dBi in 5 GHz H, 3.9 dBi in 5 GHz L and
3.5 dBi in BLE

Receive sensitivity
2.4GHz 5GHz H 5GHz L
1 Mbps -99
11 Mbps -91
6 Mbps -94 -93 -94
54 Mbps -77 -77 -77
HT20 (MCS0/8) -94 -94 -94
HT20 (MCS7/15) -76 -77 -76
HT40 (MCS0/8) -91 -91 -91
HT40 (MCS7/15) -74 -74 -74
VHT20 (MCS0) -94 -94 -94
VHT20 (MCS8) -72 -72 -71
VHT40 (MCS0) -91 -91 -91
VHT40 (MCS9) -68 -68 -68
VHT80 (MCS0) -88 -88
VHT80 (MCS9) -64 -64
HE20 (MCS0) -94 -94 -93
HE20 (MCS11) -65 -65 -65
HE40 (MCS0) -91 -91 -90
HE40 (MCS11) -62 -62 -62
HE80 (MCS0) -88 -88
HE80 (MCS11) -59 -59
HE160 (MCS0) -84
HE160 (MCS11) -56

Maximum transmit power (per chain)
2.4GHz (in dBm) 5GHz L (in dBm) 5GHz H(in dBm)
1 Mbps 18
11 Mbps 18
6 Mbps 18 18 18
54 Mbps 17 16 16
HT20 (MCS0/8) 18 17 17
HT20 (MCS7/15) 16 15 15
HT40 (MCS0/8) 18 17 17
HT40 (MCS7/15) 16 15 15
VHT20 (MCS0) 18 17 17
VHT20 (MCS8) 16 15 14
VHT40 (MCS0) 18 17 17
VHT40 (MCS9) 15 14 14
VHT80 (MCS0) 17 17
VHT80 (MCS9) 13 14
HE20 (MCS0) 18 16 16
HE20 (MCS11) 13 13 13
HE40 (MCS0) 18 16 16
HE40 (MCS11) 13 13 13
HE80 (MCS0) 16 16
HE80 (MCS11) 13 13
HE160 (MCS0) 16
HE160 (MCS11) 13

Power
• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Direct DC source:
¬ 48 V DC nominal, ± 5%
• Power over Ethernet (PoE):
¬ IEEE 802.3bt compliant source
• Maximum (worst case) power consumption:
¬ 45W (input IEEE 802.3bt POE); Unrestricted functionality
¬ 42W (input dual IEEE 802.3at POE); The USB port is disabled
¬ 24W (input IEEE 802.3at POE); The USB port is disabled, Eth1 port is disabled, tri radio downgrade to 2*2

Mounting
• Ceiling/wall mounting (Mount kit needs to be ordered separately)

Environmental
• Operating:
¬ Temperature: 0°C to 45°C (-32°F to +113°F)
¬ Humidity: 5% to 95% non-condensing
• Storage and transportation:
¬ Temperature: -40°C to +70°C (-40°F to +158°F)

Dimensions/Weight
• Single AP excluding packing box and accessories:
¬ 260 mm (W) x 260 mm (D) x 60 mm (H) – 10.23” (W) x 10.23” (D) x 2.36” (H)
¬ 2372 g/5.23 lb
• Single AP including packing box and accessories:
¬ 298 mm (W) x 317 mm (D) x 111 mm (H) – 11.73” (W) x 12.48” (D) x 4.37” (H)
¬ 2828 g/6.23 lb

Reliability
• MTBF: 572,332h (65.33 years) at +25°C operating temperature

Capacity
• Up to 8 SSID/Radio (24 SSID/AP), hardware ready for 16 SSID per
• Support for up to 1536 associated client devices

Software feature
• Up to 4K APs when managed by OV2500. No limit on number of AP groups
• Up to 255 APs per web managed (HTTP/HTTPS) cluster
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with OmniVista 2500
• Captive portal (Internal/External)
• Guest self-registration optional SMS notification) with OmniVista 2500
• Internal user database
• RADIUS client
• Guest social-login with OmniVista 2500
• RADIUS proxy authentication with OmniVista 2500
• LDAP/AD proxy authentication with OmniVista 2500
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• White/black list
• Zero-touch provisioning (ZTP)
• NTP Client
• ACL
• DHCP/DNS/NAT
• Wireless MESH P2P/P2MP
• Wireless bridge
• Rogue AP location and containment
• Dedicated Scanning AP
• System log report
• SSHv2
• SNMPv2
• Wireless attack detection with OmniVista 2500
• Floor plan and heat map with OmniVista 2500
• Stanley Healthcare/Aeroscout RTLS support

IEEE standard
• IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.11e WMM, U-APSD
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.1Q (VLAN Tagging)
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• 802.11r Fast roaming

Regulatory and certification
• CB Scheme Safety, cTUVus
• Wi-Fi CERTIFIED Wi-Fi 6, Passpoint R3
• FCC
• CE Marked
• EN 60601-1-1 and EN 60601-1-2
• Bluetooth SIG
• RoHS, REACH, WEEE
• EMI and susceptibility (Class B)
• 2014/35/EU Low Voltage Directive
• 2014/30/EU EMC Directive
• 2011/65/EU RoHS Directive
• 2014/53/EU Radio Equipment Directive
• EN 55032
• EN 55035
• EN 50385
• IEC/EN 60950 and 62368
• EN 300 328
• EN 301 893
• EN 301 489-1
• EN 301 489-17
