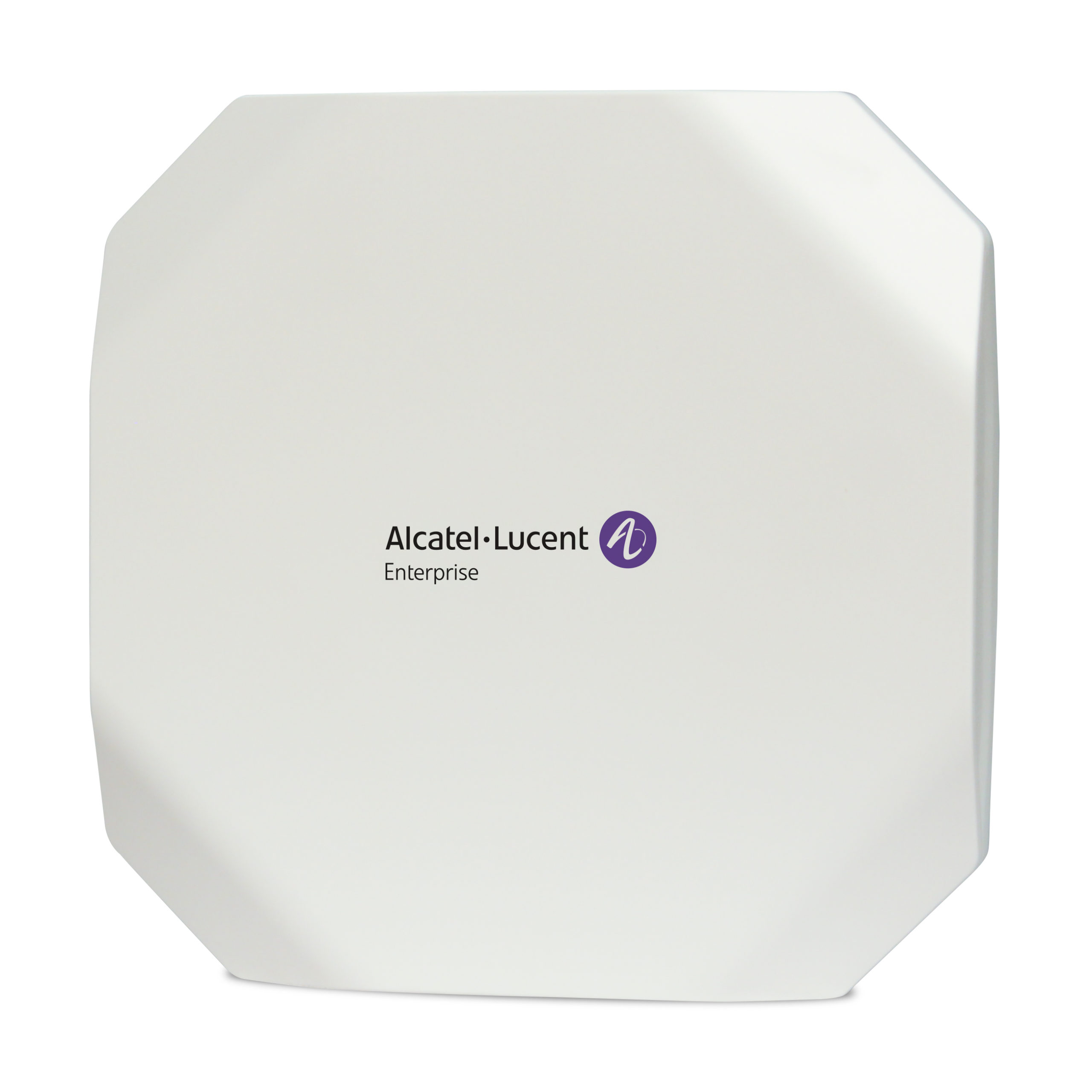

Stellar Access Point 1311

Description

Radio specification
AP type: Indoor
• Dual radio, 5 GHz 802.11ax 2×2:2 and 2.4 GHz 802.11ax 2×2:2
¬ 5 GHz: 2×2:2 up to 1.2 Gb/s wireless data rate to individual 2SS HE80 802.11ax client devices
¬ 2.4 GHz: 2×2:2 up to 573 Mb/s wireless data rate to individual 2SS HE40 802.11ax client devices
• Supported frequency bands (country-specific restrictions apply):
¬ 2.400 to 2.4835 GHz
¬ 5.150 to 5.250 GHz
¬ 5.250 to 5.350 GHz
¬ 5.470 to 5.725 GHz
¬ 5.725 to 5.850 GHz
• Available channels: Dependent on configured regulatory domain
• Brazil: Maximum transmit power: 21 dBm on 2.4 GHz, 21 dBm on 5 GHz
• Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
¬ 21 dBm on 2.4 GHz (18 dBm per chain)
¬ 21 dBm on 5 GHz (18 dBm per chain)
• DFA (Dynamic Frequency Adjustment) optimizes available channels and provides proper transmission power
• Short guard interval for 20-MHz, 40-MHz, and 80-MHz channels
• Transmit beamforming (TxBF) for increased signal reliability and range
• 802.11n/ac packet aggregation: Aggregated Mac Protocol Data Unit (A-MPDU), Aggregated Mac Service Data Unit (A-MSDU)
• Supported data rates (Mb/s):
¬ 802.11b: 1, 2, 5.5, 11
¬ 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
¬ 802.11n (2.4 GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
¬ 802.11n (5 GHz): 6.5 to 600 (MCS0 to MCS31, HT20 to HT40)
¬ 2.4 GHz 256-QAM: 6.5 to 400 (MCS0 to MCS9, NSS=1 to 2, VHT20 to VHT40)
¬ 802.11ac: 6.5 to 866.7 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80)
¬ 802.11ax (2.4 GHz): 3.6 to 573 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
¬ 802.11ax (5 GHz): 3.6 to 1201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
• Supported modulation types:
¬ 802.11b: BPSK, QPSK, CCK
¬ 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
¬ 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
¬ 802.11n high-throughput (HT) support: HT 20/40
¬ 802.11ac very high throughput (VHT) support: VHT 20/40/80
¬ 802.11ax high efficiency (HE) support: HE 20/40/80
• Advanced Cellular Coexistence (ACC)
¬ Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/ femtocell equipment
• Full band 1×1 radio, dedicated for scanning
¬ Bluetooth 5/Zigbee: up to 6 dBm transmit power (class 1) and -93 dBm receive sensitivity
¬ Integrated omnidirectional antenna with peak gain of 3.2 dBi

Interfaces
• 2x 10/100/1000 Base-T auto-sensing (RJ-45) port, Eth0-Eth1, Power over Ethernet (PoE) 802.3at compliant
• 1x 10/100/1000 BASE-T autosensing (RJ-45) port, LAN
• 1x USB 2.0 Type C (5V, 500mA)
• Reset button: Factory reset

Visual indicators (Tri-color LED)
• For system and radio status
¬ Red flashing: System abnormal, link down
¬ Red light: System startup
¬ Red and blue rotate flashing: System running, OS upgrading
¬ Blue light: System running, dual bands working
¬ Green flashing: System running, no SSID created
¬ Green light: System running, single band working
¬ Red, blue and green rotate flashing
¬ System running, use for location of an AP

Security
• Integrated Trusted Platform Module (TPM 2.0) for secure storage of credentials and keys
• 802.11i, WPA2, WPA3, Enterprise with CNSA Option, Personal (SAE)
• 802.1X
• WEP, Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
• Firewall: ACL, wIPS/wIDS and DPI application policy enforcement with OmniVista
• Portal page authentication

Antenna
• AP1311: 2×2:2 @ 2.4 GHz, 2×2:2 @ 5 GHz
¬ Integrated omni-directional antennas with maximum antenna gain of 3.3 dBi in 2.4 GHz and 3.3 dBi in 5 GHz

Receive sensitivity
2.4 – 5 GHz
1 Mb/s -97
11 Mb/s -90
6 Mb/s -93 -93
54 Mb/s -76 -77
HT20 (MCS0/8) -93 -93
HT20 (MCS7/15) -73 -76
HT40 (MCS0/8) -91 -91
HT40 (MCS7/15) -72 -74
VHT20 (MCS0) -93 -93
VHT20 (MCS8) -71 -73
VHT40 (MCS0) -91 -91
VHT40 (MCS9) -67 -68
VHT80 (MCS0) -88
VHT80 (MCS9) -64
HE20 (MCS0) -93 -93
HE20 (MCS11) -64 -65
HE40 (MCS0) -90 -91
HE40 (MCS11) -62 -62
HE80 (MCS0) -88
HE80 (MCS11) -59

Maximum Transmit power (per chain)
2.4 GHz 5 GHz
1 Mb/s 18 dBm
11 Mb/s 18 dBm
6 Mb/s 18 dBm 18 dBm
54 Mb/s 16 dBm 16 dBm
HT20 (MCS0/8) 18 dBm 18 dBm
HT20 (MCS7/15) 15 dBm 15 dBm
HT40 (MCS0/8) 18 dBm 18 dBm
HT40 (MCS7/15) 15 dBm 15 dBm
VHT20 (MCS0) 18 dBm 18 dBm
VHT20 (MCS8) 14 dBm 15 dBm
VHT40 (MCS0) 18 dBm 18 dBm
VHT40 (MCS9) 14 dBm 15 dBm
VHT80 (MCS0) 18 dBm
VHT80 (MCS9) 14 dBm
HE20 (MCS0) 18 dBm 18 dBm
HE20(MCS11) 14 dBm 15 dBm
HE40 (MCS0) 18 dBm 18 dBm
HE40(MCS11) 14 dBm 15 dBm
HE80 (MCS0) 18 dBm
HE80 (MCS11) 14 dBm

Power
• Supports direct DC power and Power over Ethernet (PoE)
• When both power sources are available, DC power takes priority over PoE
• Direct DC source:
¬ 48 V DC nominal, ± 5%
• Power over Ethernet (PoE):
¬ IEEE 802.3af/at compliant source
• Maximum (worst case) power consumption:
¬ 19.1W (input IEEE 802.3at POE); Unrestricted functionality
¬ 12W (input IEEE 802.3af POE); The USB port is disabled
• Maximum power consumption in idle mode:
¬ 4.26W

Mounting
• Ceiling/wall mounting (Mounting kit must be ordered separately)

Environmental
• Operating:
¬ Temperature: 0°C to 45°C (-32°F to +113°F)
¬ Humidity: 5% to 95% non-condensing
• Storage and transportation:
¬ Temperature: -40°C to +70°C (-40°F to +158°F)

Dimensions/Weight
• Single AP excluding packing box and accessories:
¬ 180mm (W) x 180mm (D) x 36mm (H) 7.08” (W) x 7.08” (D) x 1.41” (H)
¬ 582g/1.28lb
• Single AP including packing box and accessories:
¬ 228mm (W) x 198mm (D) x 66mm (H) 8.97” (W) x 7.79” (D) x 2.59” (H)
¬ 785g/1.73lb

Reliability
• MTBF: 978,601h (111.71 years) at
+25ºC operating temperature

Capacity
• Up to 8 SSID per radio (total 16 SSID)
• Support for up to 512 associated client devices

Software feature
• Up to 4K APs when managed by OmniVista 2500OmniVista 2500 NMS. No limit on number of AP groups
• Up to 255 APs per web managed (HTTP/ HTTPS) cluster
• Auto channel selection
• Auto transmit power control
• Bandwidth control per SSID
• L2 roaming
• L3 roaming with OmniVista 2500 NMS
• Captive portal (Internal/External)
• Guest self-registration optional SMS notification with OmniVista 2500 NMS
• Internal user database
• RADIUS client
• Guest social-login with OmniVista 2500 NMS
• RADIUS proxy authentication with OmniVista 2500 NMS
• LDAP/AD proxy authentication with OmniVista 2500 NMS
• Wireless QoS
• Band steering
• Client smart load balance
• Client sticky avoidance
• User behavior tracking
• White/black list
• Zero-touch provisioning (ZTP)
• NTP Client
• ACL
• DHCP/DNS/NAT
• Wireless MESH P2P/P2MP
• Wireless Bridge
• Rogue AP location and containment
• Dedicated Scanning AP
• System log report
• SSHv2
• SNMPv2
• Wireless attack detection with OmniVista 2500 NMS
• Floor plan and heat map with OmniVista 2500 NMS
• Stanley Healthcare/Aeroscout RTLS support

IEEE standard
• IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.11e WMM, U-APSD
• IEEE 802.11h, 802.11i, 802.11e QoS
• IEEE 802.1Q (VLAN Tagging)
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• 802.11r Fast roaming Regulatory and certification
• CB Scheme Safety, cTUVus
• Wi-Fi CERTIFIED Wi-Fi 6, Passpoint R3
• FCC
• CE Marked
• EN 60601-1-1 & EN 60601-1-2
• Bluetooth SIG
• RoHS, REACH, WEEE
• EMI and susceptibility (Class B)
• 2014/35/EU Low Voltage Directive
• 2014/30/EU EMC Directive
• 2011/65/EU RoHS Directive
• 2014/53/EU Radio Equipment Directive
• EN 55032
• IEC/EN 60950 and 62368
• EN 300 328
• EN 301 893
• EN 301 489-1
• EN 301 489-17
